Service Map¶

On the Service Map page, you can visually view the call relationships between services through the topology diagram.

Space Scope¶

After entering the Service Map page, service data of the current workspace is queried by default. Querying service details and metrics from other workspaces requires corresponding data authorization. If a service node from an unauthorized space appears in the topology, you cannot continue to view the restricted details and associated data of that service.

If the current workspace has been authorized to access data from other spaces, you can use the space scope selector at the top of the page to switch the viewing dimension:

• Current Space: Displays only the Service Map of the current workspace (default option);
• All Spaces: Displays the Service Map of the current space and all accessible spaces;
• Authorized Spaces: Select one or more specified authorized workspaces to view the Service Map of the corresponding spaces.

Search, filtering, service count statistics, node colors, and topology metrics on the page are all calculated in real time based on the currently selected space scope. If the current workspace has no cross-space authorization, no other space options will be shown on the page.

A single query can only include workspaces on the same site. Services with the same name from different spaces are distinguished by their respective sources; when clicking a node, viewing upstream/downstream services, or viewing associated data, the source space of the selected node is used, rather than the currently logged-in space or the first selected space. For general conditions, see APM and RUM Cross-Space Queries on the Same Site.

Single Service¶

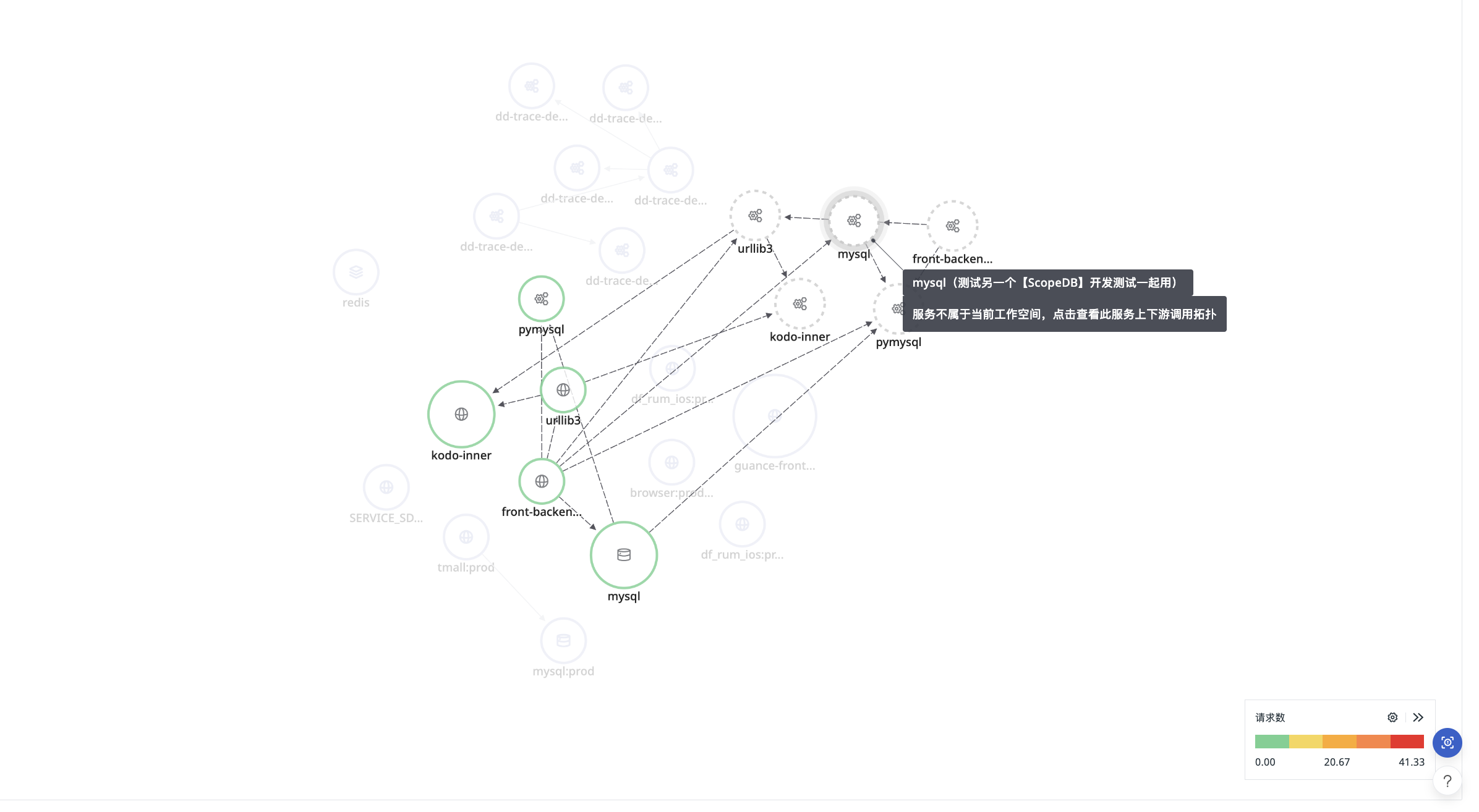

When you hover over a single service node, the corresponding service and its associated nodes are highlighted, while unrelated services and connection lines turn gray. The hover metric card displays data such as the request count, error rate, average response time, P99/P95 response time, and maximum response time of the service.

View Service Details¶

On the default page, in addition to visually displaying the call relationships between services within the currently selected space scope, you can click a service node for which you have corresponding data access permissions, and a side panel slides out to display its details.

Service details mainly include the following elements:

1. Service name, etc., and the corresponding team, contact information, alert count, etc.;
2. Basic metrics of the current service: request count, error rate, average response time, P99/P95 response time, and maximum response time;
3. Click to view the upstream/downstream services, service overview, and associated logs and traces of the current service;
4. Anomaly trend charts for metrics (service request response time, error request distribution) and logs (error log count).

After opening the details from the Session Replay page and continuing to the associated Profile details, you can use the back entry on the details page to return to the previous level and continue viewing associated data.

Manage Topology¶

• Zoom in, zoom out, or fully display the current Service Map;

• Select different performance metrics to match service node colors, including request count, P50/P75/P95/P99 response time, maximum response time, and error rate;

• Custom Colors: Set the color range for service nodes for the selected "fill metric".

• Custom Intervals: Customize the color range for service nodes based on the selected fill metric. The system automatically divides the value range into 5 numerical intervals based on the maximum and minimum values of the selected metric in the topology, with each interval corresponding to a color;

  • Node Size: There are 3 node sizes in total. The maximum (Max) and minimum (Min) of service requests per second are divided into three equal parts, and the resulting three intervals correspond to 3 node sizes.

• Topology Configuration:

  • Distinguish Environment and Version: Draw the trace topology based on two dimensions: service (service) and service environment version (service+env+version). When enabled, the system draws the Service Map according to different environment versions;
  • Service Grouping: Supports grouping topology nodes by Kubernetes cluster, environment, or service tags. Different groups are displayed in separate areas, and cross-group calls are still represented by connection lines.

  In the Service Map > Full Path view of Service Details, you can also use the grouping feature to view call relationships.

  • Distinguish Same-Named Services by Project: When enabled, the system splits services with the same name based on the project attribute. Data with the same service name but different project values is displayed as different nodes; data without project is grouped under "Unset Project".
  • Whether to calculate node size based on request count;
  • Select the hover highlight scope: directly associated nodes (upstream/downstream) / full-chain associated nodes (multi-level upstream/downstream);
  • Show Only Services Matching Filter Conditions: When enabled, the Service Map filters service nodes based on the current filter conditions, retaining only service nodes that match the conditions and hiding those that do not.

Cross-Space Query¶

Cross-space drill-down uses the source space of the selected service; when returning to the list, the original query scope is retained. For data authorization configuration, see Cross-Workspace Authorization.

If the same Trace data is split, the data will belong to different workspaces, making it impossible to view the complete trace data in a single workspace. Cross-workspace Service Map queries ensure data query continuity: you can click the button directly in the current workspace to view the upstream/downstream call topology of the current service.

Data Source Definition and DQL Query¶

For more details, refer to Service Map Data Source Definition.
