Time Widget¶

Control the data display range of the current Explorer using the time widget. You can filter data by manually entering a time range, quickly selecting a pre-set time range, or customizing the time range settings.

Pre-set Time Ranges¶

The system provides various pre-set quick time ranges. By clicking "More," you can select additional time ranges for data viewing. Pre-set time ranges include:

• Drop-down list: "Last 1 hour," "Last 3 hours," "Last 1 day," etc.;
• Dynamic Time
• Static Time

Dynamic Time¶

Includes four units: minutes, days, weeks, and months, such as today, yesterday, this week, last week, etc.

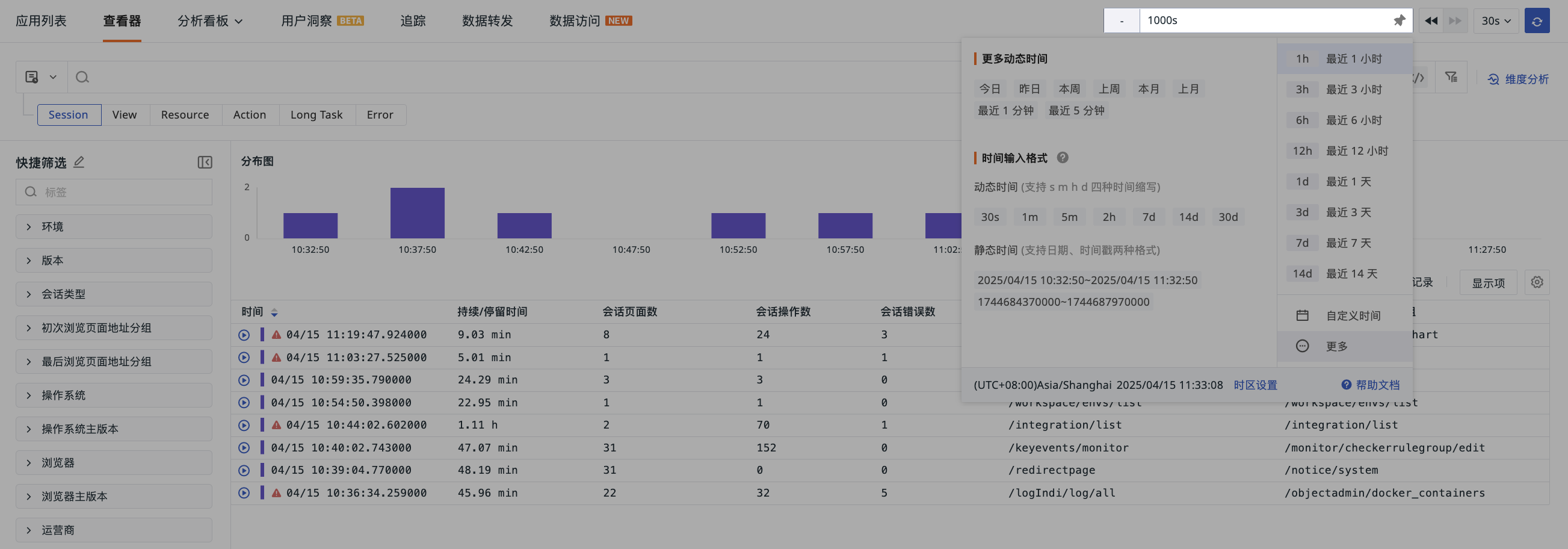

Static Time¶

Contains two formats:

• Date
• Timestamp

Date¶

The static date-time format supports multiple writing styles with second-level precision. Delimiters can be ~, -, or ,, and spaces are allowed before and after. However, commas must be in English. For example:

• 2022/08/04 09:30:00~2022/08/04 10:00:00
• 2022/08/04 09:30:00-2022/08/04 10:00:00
• 2022/08/04 09:30:00,2022/08/04 10:00:00

Timestamp¶

Timestamp ranges support millisecond-level input. Delimiters can be ~, -, or ,, and spaces are allowed before and after. However, commas must be in English. For example:

• 1659576600000~1659578400000
• 1659576600000-1659578400000
• 1659576600000,1659578400000

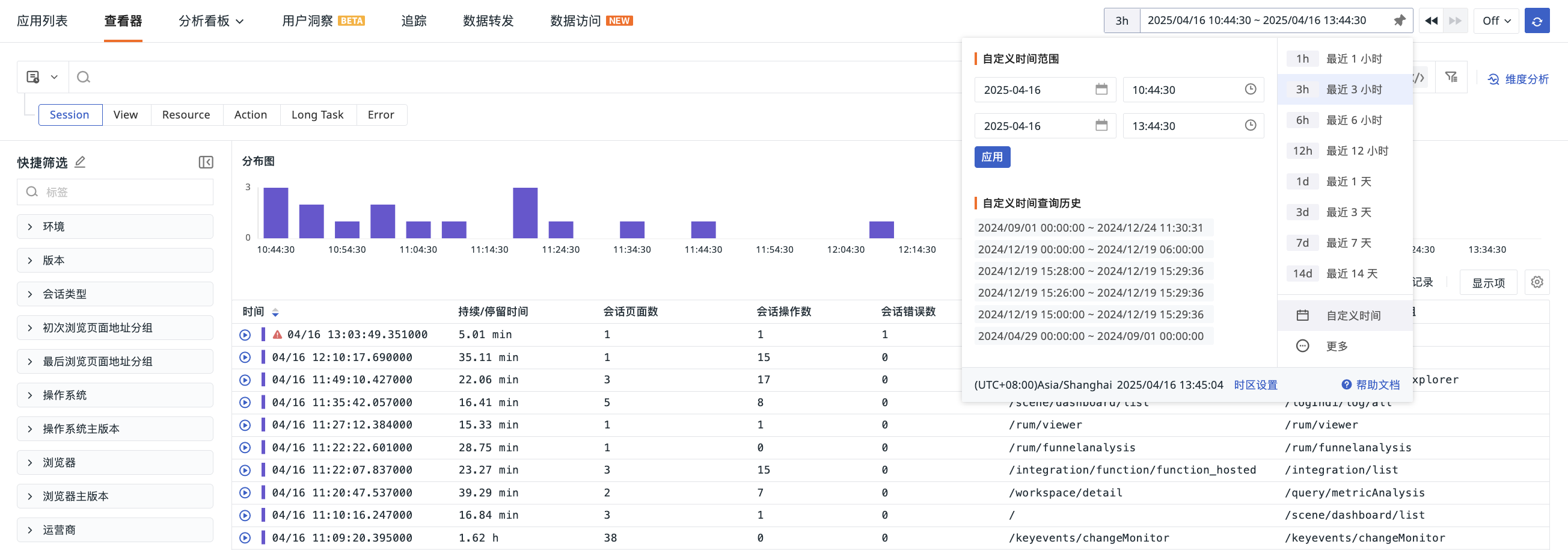

Custom Time Range¶

In addition to the pre-set time ranges, you can click "Custom Time" to select specific time ranges, including dates and times.

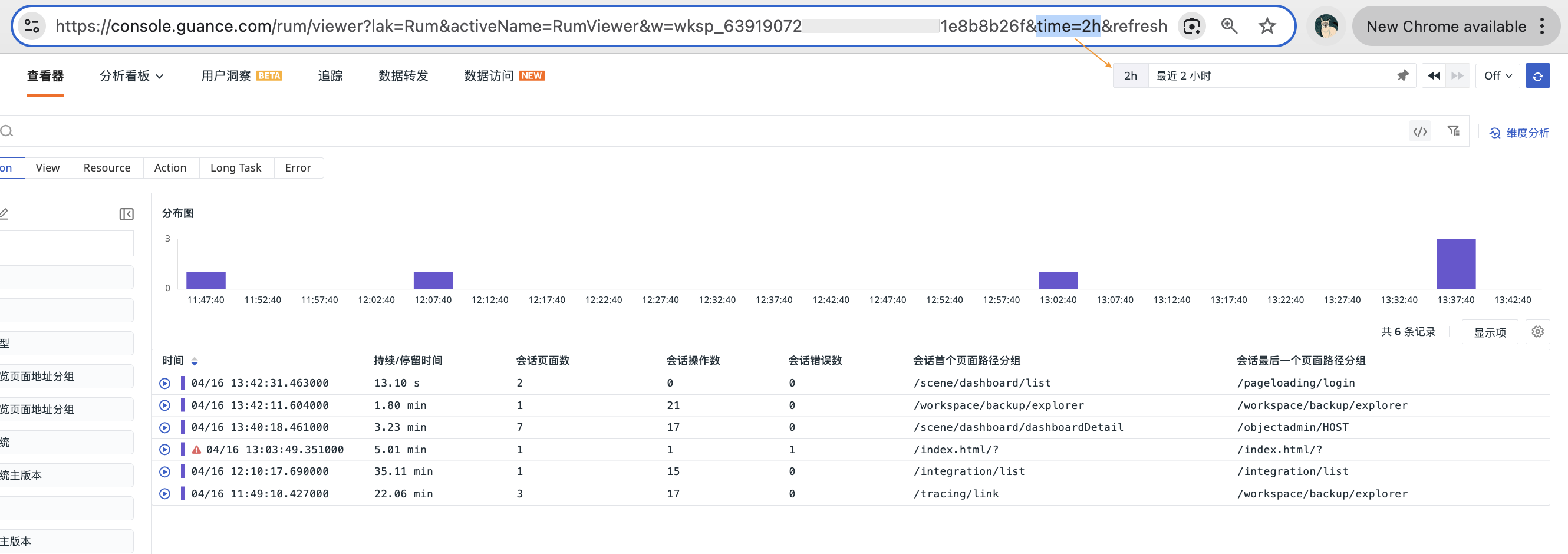

Time Range in URL¶

Besides selecting a time range through the time widget, you can also directly modify the time parameter in the browser's URL to query data. Supports seconds (s), minutes (m), hours (h), and days (d). For example:

• time=30s
• time=20m
• time=6h
• time=2d

After modifying time=2h in the browser, the Explorer will display data from the last 2 hours.

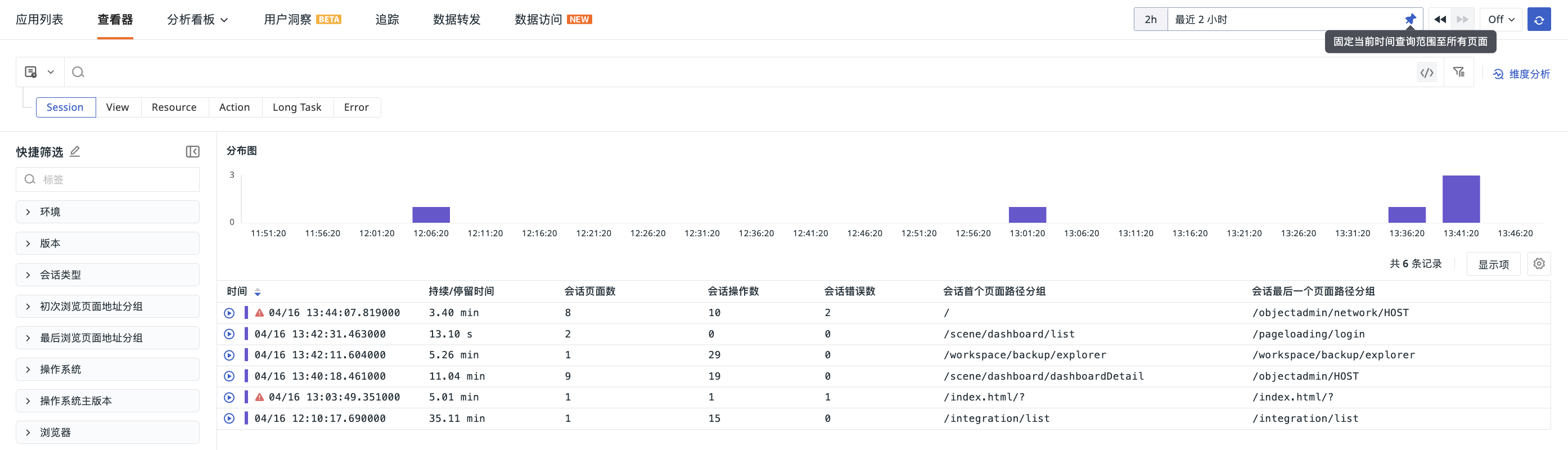

Lock Time Range¶

By clicking in the time widget, you can set a fixed query time range. After setting, all Explorers and dashboards will default to displaying the current time range.

For example, if the locked time is "Last 2 hours," then all Explorers and dashboards will display data according to this time range.

Time Zone¶

Set the current displayed time zone in the time widget to switch to the corresponding workspace time zone when viewing data.

1. Go to Time Widget > Time Zone Settings;
2. In the Modify Time Zone window, the default display is "Browser Time," which is the local time detected by the browser;
3. Select the time zone;
4. Confirm.

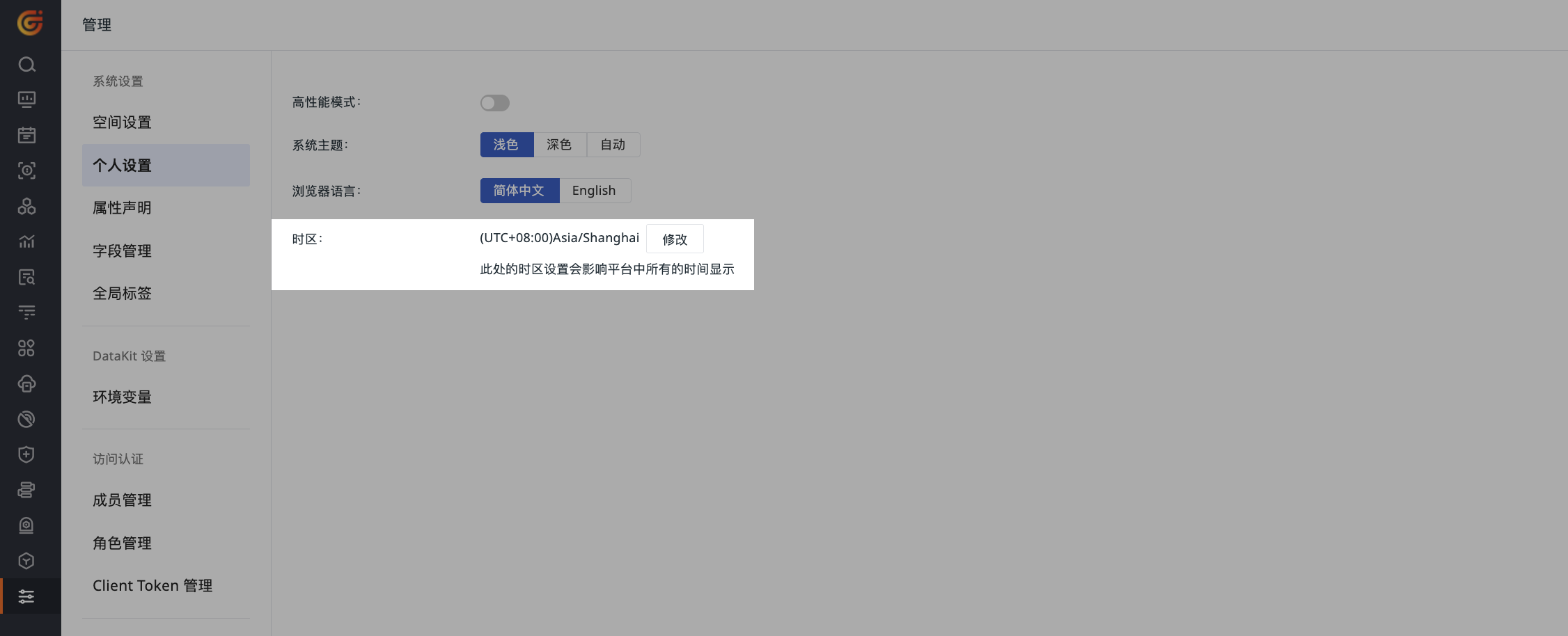

Workspace Time Zone¶

To ensure that workspace members can analyze data and troubleshoot issues under a unified time zone, you can configure a unified time zone for the workspace.

1. Click Manage > User Settings > Time Zone;
2. Enter the modification pop-up window;
3. Select the time zone;
4. Confirm.

After configuration, other members of the workspace can choose the configured workspace time zone, and their time zone status will follow changes to the configured time zone.

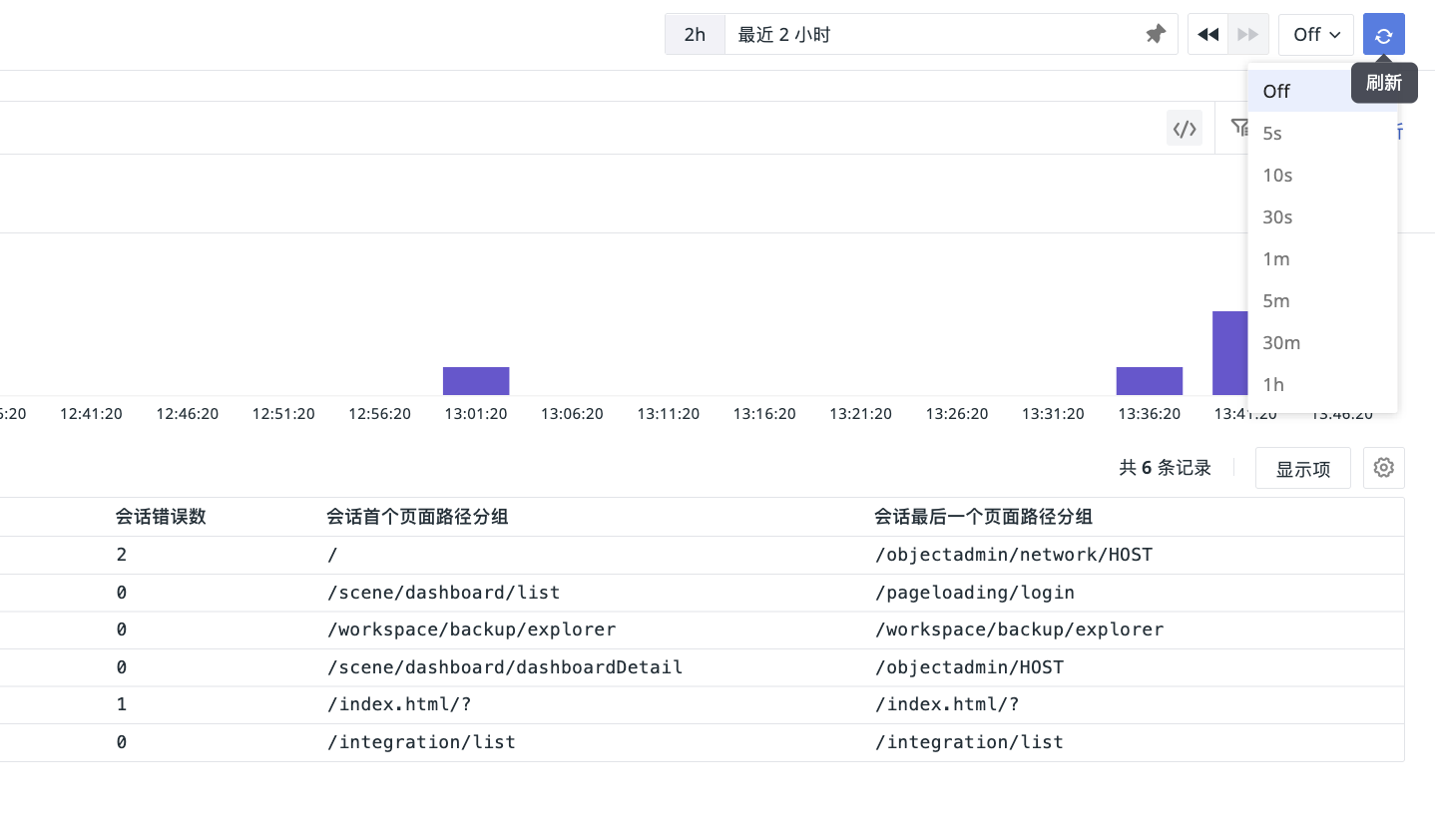

Auto Refresh¶

"Auto Refresh" allows you to quickly obtain real-time data. Supported refresh frequencies include: 5 seconds, 10 seconds, 30 seconds, 1 minute, 5 minutes, 30 minutes, and 1 hour.

If auto-refresh is not needed, select Off.
