Advanced Linkage Configuration

On the Explorer page, you can configure jump links for individual fields, allowing you to directly open the target page from the current field, and pass parameters through variables for linkage analysis.

Configuration Entry

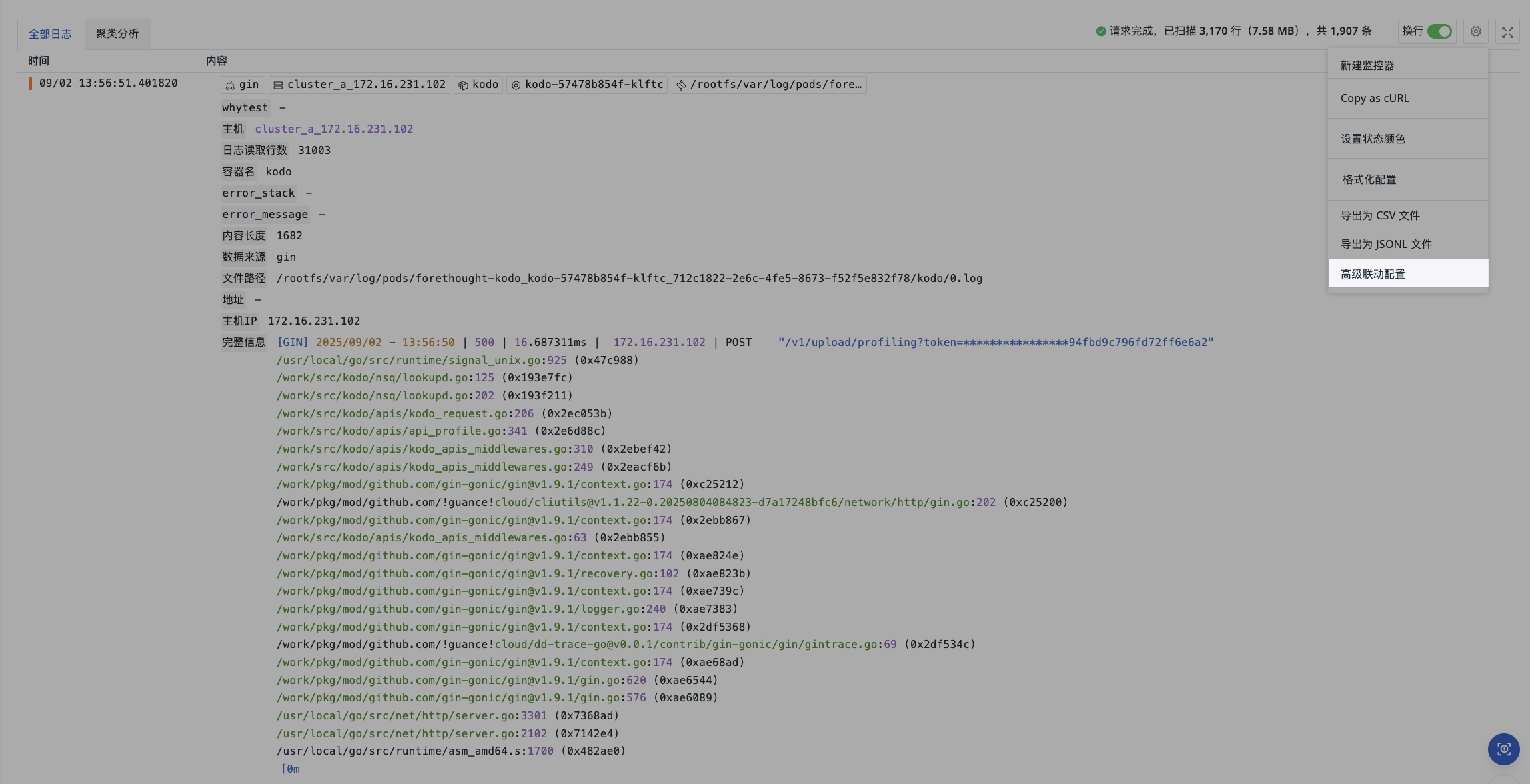

Settings window:

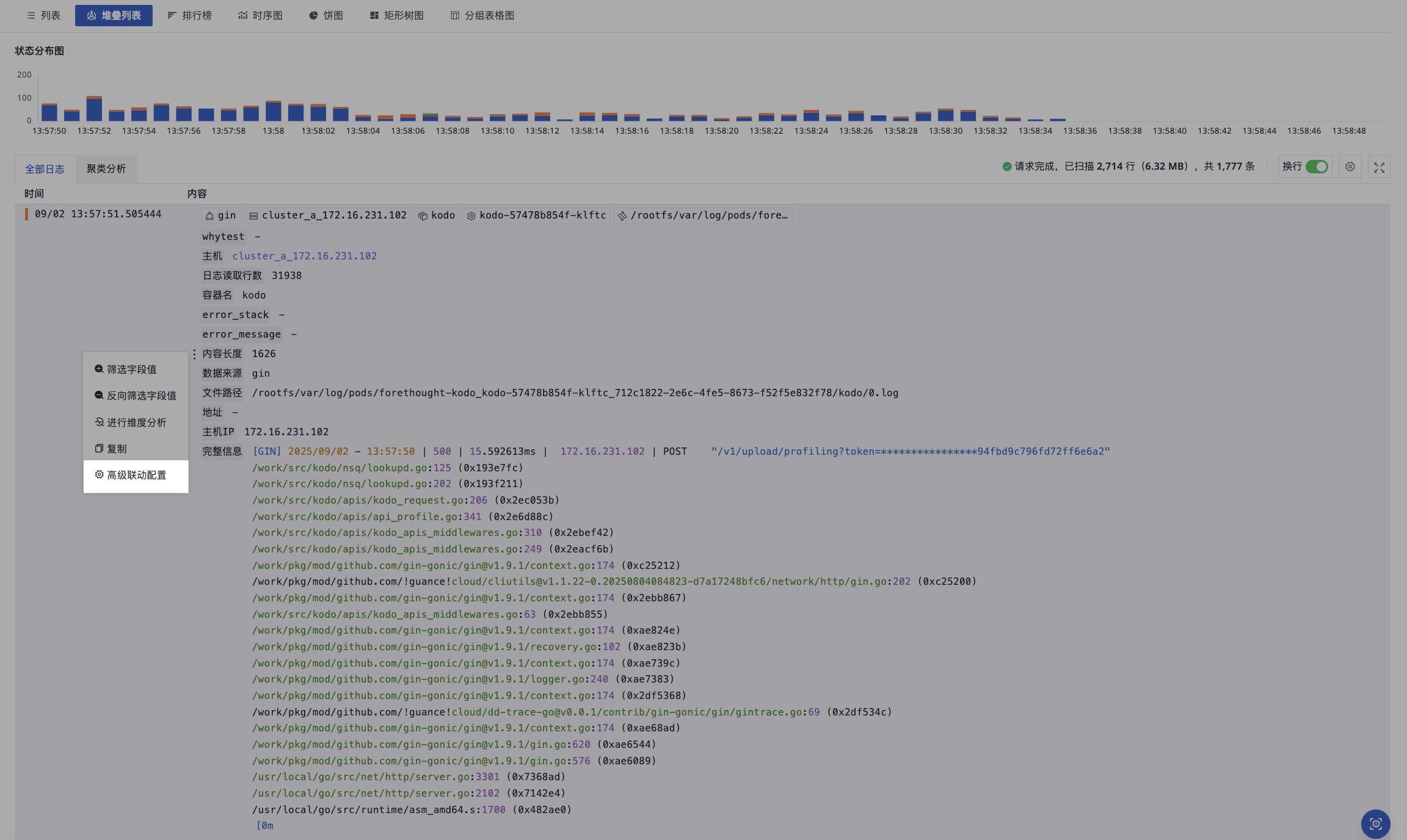

Field in the list:

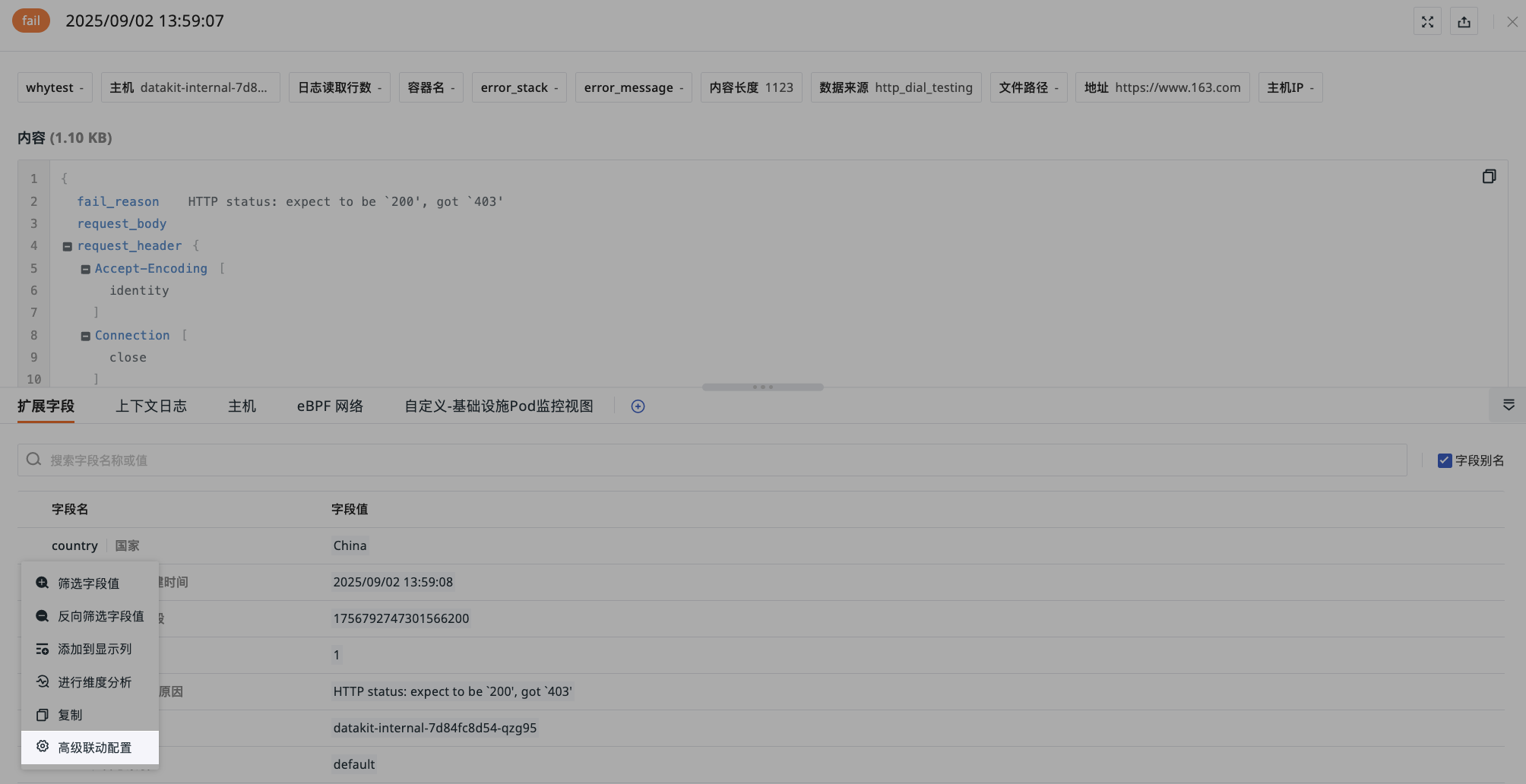

Extended field in the details page:

Start Configuration

Enter the Advanced Linkage Configuration window > Field List > Add a field, such as host, and click ✅ after successful input.

For fields that have already been created, you can continue to configure links for them:

  1. Define the link name;

  2. Select the jump opening method for the subsequent link, including:

    • New page
    • Current page
    • Slide page

  3. Add link address;

  4. Confirm.

Link Address

The link address generally consists of two parts:

  • Main link path
  • Additional variables

Link Path

The system provides some preset link paths, and you can directly select the data type you want to associate.

Associated Data Type Preset Link
Logs /logIndi/log/all
Tracing /tracing/link/all
Error Tracking /tracing/errorTrack
Profile /tracing/profile
Containers /objectadmin/docker_containers?routerTabActive=ObjectadminDocker
Pod /objectadmin/kubelet_pod?routerTabActive=ObjectadminDocker
Processes /objectadmin/host_processes?routerTabActive=ObjectadminProcesses
Dashboards /scene/dashboard/dashboardDetail

Based on the selected preset link path, the system provides corresponding parameters.

Parameter
 Description
time Time filter, can be used in Explorer, Dashboards

Link format:
  • Pass query time through template variable: &time=#{TR}
  • Query the last 15 minutes: &time=15m
  • Set specific start and end times: &time=1675247688602,1676457288602
    		•
    variable View variable query, generally used in dashboard views

    Link format: &variable={"host":"guance","service":"kodo"}
    dashboard_id Dashboard ID, can be used to specify a dashboard/built-in view

    Link format: &dashboard_id=dsbd_069b2b90f562123456789123456789
    name Name, can be used to specify dashboard name/note name/custom Explorer name, etc.

    Link format: &name=Linux Host Monitoring View
    query Tag filter or text search, generally used for data filtering in Explorer. Supports combining tag filters and text searches through space, AND, OR
    ⚠ Space is equivalent to AND
    cols Explorer display columns, generally used to specify the display columns of the Explorer. Displays system default when not specified

    Link format: &cols=time,host,service,message
    w Workspace ID, needs to be specified when jumping across workspaces

    Link format: &w=wksp_40a73c6c2b024301a0b1d139e1234567

    Template Variables

    Field-level link configuration includes two types of variables:

    • Time variables
    Variable
    		 Description
    #{TR} The current Explorer query time range. For example, if the query time is last 1 hour, then the template variable &time=#{TR} is equivalent to &time=1h
    #{startTime} When the time is not locked, it is the start time of the time widget in the upper right corner of the Explorer; when locked, it is the start time of the locked time
    #{endTime} When the time is not locked, it is the end time of the time widget in the upper right corner of the Explorer; when locked, it is the end time of the locked time
    • Tag variables

    #{field_name}: Used to replace the target field value of the query. For example, #{host}: Get the host field value of the selected data.

    Apply Configuration

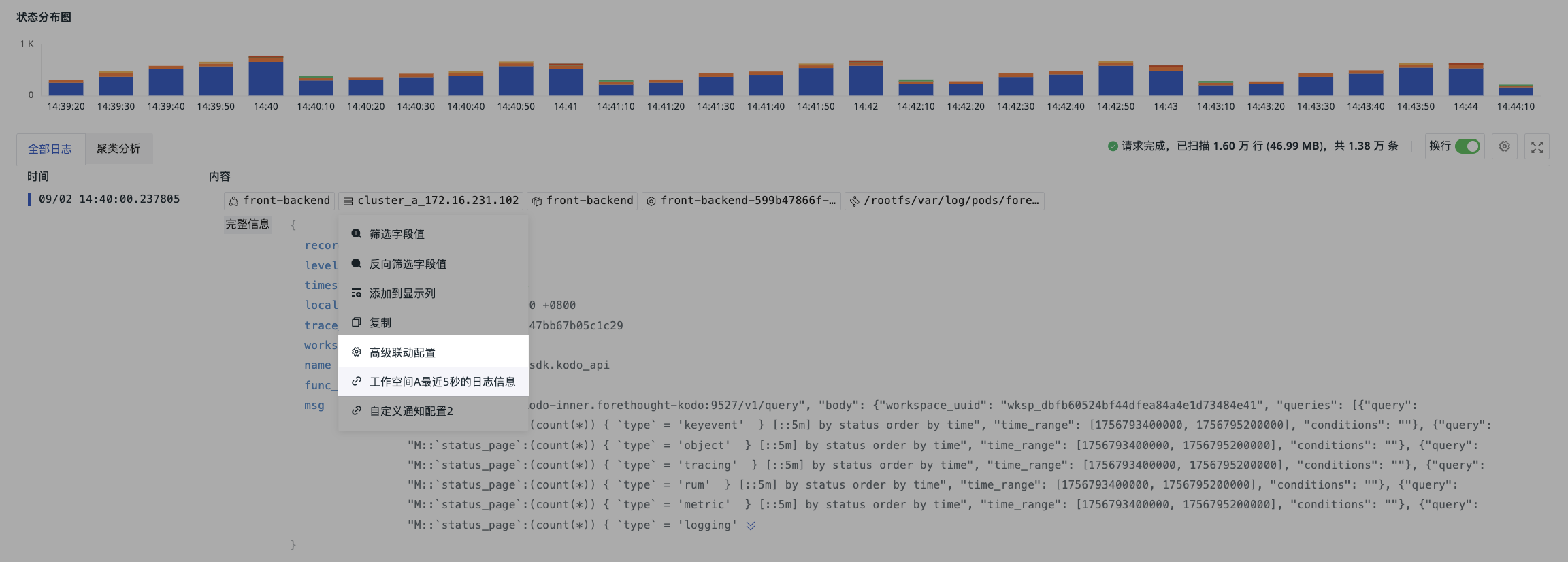

    After completing the jump link configuration for the field, return to the Explorer list, and click under the host field to achieve the jump. The target page after the jump will display all the information you configured in the link address.
