Offline Deployment

In some cases, the target machine does not have a public access exit, so you can install DataKit offline as follows.

Agent Installation

If there is a machine in the intranet that can access the external, a proxy can be deployed at the node to proxy the access traffic of the intranet machine through the machine.

At present, DataKit has a inner proxy collector; The same goal can also be achieved through Nginx forward proxy function. The basic work flow is as follows:

sequenceDiagram
autonumber
participant cdn as CDN

box Proxy
participant proxy as Nginx Or DataKit
end

participant dk as DataKit host
participant dw as DataWay

dk -->> proxy: Install packages
proxy -->> cdn: Install via Proxy
cdn -->> dk: Install ok
dk -->> proxy: Upload data
proxy -->> dw: Proxy request to DataWay

Preconditions

  • Install a DataKit on a machine with a public network exit in the normal installation mode, and turn on the proxy collector on the DataKit, assuming that the proxy collector is located in DataKit IP 1.2. 3.4, with the following configuration:
[[inputs.proxy]]
  ## default bind ip address
  bind = "0.0.0.0"
  ## default bind port
  port = 9530
  • Or Nginx ready to configure the forward proxy
  • Use the DataKit proxy

Add the environment variable HTTPS_PROXY="1.2.3.4:9530", and the installation command is as follows:

DK_DATAWAY=https://openway.truewatch.com?token=<TOKEN> HTTPS_PROXY=http://1.2.3.4:9530 bash -c 'eval "$(curl -L https://static.truewatch.com/datakit/install.sh)"'
  • Using the Nginx proxy

Add the environment variable DK_PROXY_TYPE="nginx"; DK_NGINX_IP="1.2.3.4";, and the installation command is as follows:

DK_DATAWAY=https://openway.truewatch.com?token=<TOKEN> DK_NGINX_IP=1.2.3.4 HTTPS_PROXY=http://1.2.3.4:9530 bash -c 'eval "$(curl -L https://static.truewatch.com/datakit/install.sh)"'
  • Using the DataKit proxy

Add the environment variable $env:HTTPS_PROXY="1.2.3.4:9530", and the installation command is as follows:

Remove-Item -ErrorAction SilentlyContinue Env:DK_*;
$env:DK_DATAWAY="https://openway.truewatch.com?token=<TOKEN>";
$env:HTTPS_PROXY="1.2.3.4:9530";
Set-ExecutionPolicy Bypass -scope Process -Force;
Import-Module bitstransfer;
start-bitstransfer -ProxyUsage Override -ProxyList $env:HTTPS_PROXY -source https://static.truewatch.com/datakit/install.ps1 -destination .install.ps1;
powershell ./.install.ps1;
  • Using the Nginx proxy

Add the environment variable $env:DK_PROXY_TYPE="nginx"; $env:DK_NGINX_IP="1.2.3.4";, and the installation command is as follows:

Remove-Item -ErrorAction SilentlyContinue Env:DK_*;
$env:DK_DATAWAY="https://openway.truewatch.com?token=<TOKEN>";
$env:DK_NGINX_IP="1.2.3.4";
$env:DK_PROXY_TYPE="nginx";
Set-ExecutionPolicy Bypass -scope Process -Force;
Import-Module bitstransfer;
start-bitstransfer -ProxyUsage Override -ProxyList $env:DK_NGINX_IP -source https://static.truewatch.com/datakit/install.ps1 -destination .install.ps1;
powershell ./.install.ps1;

Note: Other setup parameter settings are the same as normal setup.

Full Offline Installation

When there is no external network in the environment, the installation package can only be downloaded from the public network to the internal network by moving the hard disk (U disk).

There are two strategies to choose from for full offline installation:

  • Simple mode: Directly copy the files in the U disk to each host and install DataKit. However, Simple Mode currently does not support setting through environment variables during installation.
  • Advanced mode: Deploy a Nginx on the intranet and build a file server with Nginx instead of static.truewatch.com.

Simple Mode

The address of the following files can be downloaded through wget and other download tools, or directly enter the corresponding URL to download in the browser.

Note

When downloading from Safari browser, the suffix name may be different (for example, downloading the . tar.gz file to . tar), which will cause the installation to fail. It is recommended to download with Chrome browser.

  • Download the packet data.tar.gz first, which is the same for every platform.

  • Then download more installers as below:

For Windows, only X86 is available.

After downloading, you should have a few files as below ([OS-ARCH] here refers to the platform-specific installation package):

  • datakit-[OS-ARCH].tar.gz
  • dk_upgrader-[OS-ARCH].tar.gz
  • installer-[OS-ARCH]orinstaller-[OS-ARCH].exe
  • data.tar.gz
  • datakit-apm-inject-[OS-ARCH].tar.gz

Copy these files to the corresponding machine (via USB flash drive or scp and other commands).

Note

It is crucial to download each of these files completely. They may not be reusable between different versions. For example, the installer program behaves differently across various DataKit versions because it may adjust the default configurations of DataKit, which can have varying degrees of additions and deletions. It is best to use the installer program corresponding to version 1.2.3 of DataKit for the installation or upgrade of DataKit 1.2.3.

Installation

If you are performing an offline install of the lite version of DataKit, you need to specify the installation package with a _lite suffix, such as datakit_lite-linux-amd64-1.82.0.tar.gz.

To run with root privileges:

chmod +x installer-linux-amd64
./installer-linux-amd64 --offline --dataway "https://openway.truewatch.com?token=<YOUR-TOKEN>" --srcs datakit-linux-amd64-1.82.0.tar.gz,dk_upgrader-linux-amd64-1.82.0.tar.gz,data.tar.gz

You need to run the Powershell with administrator privileges to execute:

.\installer-windows-amd64.exe --offline --dataway "https://openway.truewatch.com?token=<YOUR-TOKEN>" --srcs datakit-windows-amd64-1.82.0.tar.gz,dk_upgrader-windows-amd64-1.82.0.tar.gz,data.tar.gz

Upgrade

If you are performing an offline upgrade of the lite version of DataKit, you need to specify the installation package with a _lite suffix, such as datakit_lite-linux-amd64-1.82.0.tar.gz.

To run with root privileges:

chmod +x installer-linux-amd64
./installer-linux-amd64 --offline --upgrade --srcs datakit-linux-amd64-1.82.0.tar.gz,data.tar.gz

You need to run the Powershell with administrator privileges to execute:

.\installer-windows-amd64.exe --offline --upgrade --srcs datakit-windows-amd64-1.82.0.tar.gz,data.tar.gz
How to Specify More Configuration Parameters for Offline Installation

During online installation, we can specify some default parameters through environment variables DK_XXX=YYY. These default parameters actually take effect through the install.sh script (on Windows, it's install.ps1). However, these environment variables are ineffective for the installation program installer-xxx. We can only use the command-line arguments of installer-xxx to add these options. By using the following command, we can find out the parameters supported by the installation program:

./installer-linux-amd64 --help

For example, the Dataway address we specified above is set through the --dataway option. Additionally, these extra command-line parameter settings are only effective in installation mode and do not take effect in offline upgrade mode.

Fully Managed Mode

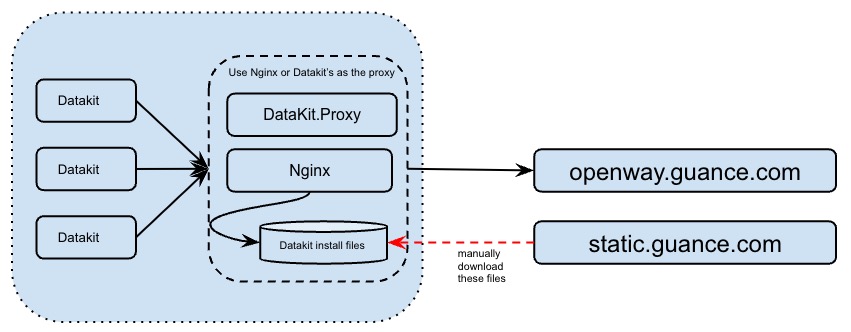

Fully Managed Mode refers to building a file server within the user's internal network, hosting all public CDN installation packages in the user's local environment to replace the functionality of the public CDN.

Currently, DataKit's installation address is a public network address, and all binary data as well as installation scripts are downloaded from the CDN site static.truewatch.com. For machines that cannot access this site, a file server can be deployed within the internal network to replace the static.truewatch.com site.

The workflow of Fully Managed Mode is as follows:

sequenceDiagram
autonumber
participant cdn as CDN

box Proxy
participant fs as Nginx File Server
participant proxy as Nginx Or DataKit
end

participant dk as DataKit
participant dw as DataWay

cdn -->> fs: Download packages
dk -->> fs: Install packages
fs -->> dk: Install ok
dk -->> proxy: Upload data
proxy -->> dw: Proxy request to DataWay

Prepare a machine that can be accessed on the intranet, install Nginx on the machine, and download (or copy) the files required for DataKit installation to the Nginx server, so that other machines can download the installation files from the Nginx file server to complete the installation.

Setting up the Nginx file server

Add configuration in nginx.conf

server {
    listen 8080;
    server_name _;
    ## Map to the following directory
    location / {
        root /;
        autoindex on;
        autoindex_exact_size off;
        autoindex_localtime on;
        charset utf-8,gbk;
    }
}

Restart Nginx：

nginx -t        # test configuration
nginx -s reload # reload configuration
  • Download the files to the /datakit directory where the Nginx server is located, taking wget downloading the Linux AMD64 platform installation package as an example:
Download packages
#!/bin/bash

# NOTE: datakit-apm-inject not support for 32-bit platform and all Windows platform.

mkdir -p /datakit
mkdir -p /datakit/apm_lib
wget -P /datakit https://static.truewatch.com/datakit/install.sh  # for Linux
wget -P /datakit https://static.truewatch.com/datakit/install.ps1 # for Windows
wget -P /datakit https://static.truewatch.com/datakit/version
wget -P /datakit https://static.truewatch.com/datakit/data.tar.gz

# linux-amd64
wget -P /datakit https://static.truewatch.com/datakit/installer-linux-amd64-1.82.0
wget -P /datakit https://static.truewatch.com/datakit/datakit-linux-amd64-1.82.0.tar.gz
wget -P /datakit https://static.truewatch.com/datakit/datakit_lite-linux-amd64-1.82.0.tar.gz
wget -P /datakit https://static.truewatch.com/datakit/dk_upgrader-linux-amd64-1.82.0.tar.gz
wget -P /datakit https://static.truewatch.com/datakit/datakit-apm-inject-linux-amd64-1.82.0.tar.gz

# linux-386
wget -P /datakit https://static.truewatch.com/datakit/installer-linux-386-1.82.0
wget -P /datakit https://static.truewatch.com/datakit/datakit-linux-386-1.82.0.tar.gz
wget -P /datakit https://static.truewatch.com/datakit/datakit_lite-linux-386-1.82.0.tar.gz
wget -P /datakit https://static.truewatch.com/datakit/dk_upgrader-linux-386-1.82.0.tar.gz

# linux-arm64
wget -P /datakit https://static.truewatch.com/datakit/installer-linux-arm64-1.82.0
wget -P /datakit https://static.truewatch.com/datakit/datakit-linux-arm64-1.82.0.tar.gz
wget -P /datakit https://static.truewatch.com/datakit/datakit_lite-linux-arm64-1.82.0.tar.gz
wget -P /datakit https://static.truewatch.com/datakit/dk_upgrader-linux-arm64-1.82.0.tar.gz
wget -P /datakit https://static.truewatch.com/datakit/datakit-apm-inject-linux-arm64-1.82.0.tar.gz

# linux-arm
wget -P /datakit https://static.truewatch.com/datakit/installer-linux-arm-1.82.0
wget -P /datakit https://static.truewatch.com/datakit/datakit-linux-arm-1.82.0.tar.gz
wget -P /datakit https://static.truewatch.com/datakit/datakit_lite-linux-arm-1.82.0.tar.gz
wget -P /datakit https://static.truewatch.com/datakit/dk_upgrader-linux-arm-1.82.0.tar.gz

# windows-amd64
wget -P /datakit https://static.truewatch.com/datakit/installer-windows-amd64-1.82.0
wget -P /datakit https://static.truewatch.com/datakit/datakit-windows-amd64-1.82.0.tar.gz
wget -P /datakit https://static.truewatch.com/datakit/datakit_lite-windows-amd64-1.82.0.tar.gz
wget -P /datakit https://static.truewatch.com/datakit/dk_upgrader-windows-amd64-1.82.0.tar.gz

# windows-386
wget -P /datakit https://static.truewatch.com/datakit/installer-windows-386-1.82.0
wget -P /datakit https://static.truewatch.com/datakit/datakit-windows-386-1.82.0.tar.gz
wget -P /datakit https://static.truewatch.com/datakit/datakit_lite-windows-386-1.82.0.tar.gz
wget -P /datakit https://static.truewatch.com/datakit/dk_upgrader-windows-386-1.82.0.tar.gz

wget -P /datakit/apm_lib https://static.truewatch.com/dd-image/dd-java-agent.jar

# Optional resource: for RUM sourcemap
sources=(
  "/datakit/sourcemap/jdk/OpenJDK11U-jdk_x64_mac_hotspot_11.0.16_8.tar.gz"
  "/datakit/sourcemap/jdk/OpenJDK11U-jdk_aarch64_mac_hotspot_11.0.15_10.tar.gz"
  "/datakit/sourcemap/jdk/OpenJDK11U-jdk_x64_linux_hotspot_11.0.16_8.tar.gz"
  "/datakit/sourcemap/jdk/OpenJDK11U-jdk_aarch64_linux_hotspot_11.0.16_8.tar.gz"
  "/datakit/sourcemap/R8/commandlinetools-mac-8512546_simplified.tar.gz"
  "/datakit/sourcemap/R8/commandlinetools-linux-8512546_simplified.tar.gz"
  "/datakit/sourcemap/proguard/proguard-7.2.2.tar.gz"
  "/datakit/sourcemap/ndk/android-ndk-r22b-x64-mac-simplified.tar.gz"
  "/datakit/sourcemap/ndk/android-ndk-r25-x64-linux-simplified.tar.gz"
  "/datakit/sourcemap/atosl/atosl-darwin-x64"
  "/datakit/sourcemap/atosl/atosl-darwin-arm64"
  "/datakit/sourcemap/atosl/atosl-linux-x64"
  "/datakit/sourcemap/atosl/atosl-linux-arm64"
)

mkdir -p /datakit/sourcemap/jdk \
  /datakit/sourcemap/R8       \
  /datakit/sourcemap/proguard \
  /datakit/sourcemap/ndk      \
  /datakit/sourcemap/atosl

for((i=0;i<${#sources[@]};i++)); do
  wget https://static.truewatch.com${sources[$i]} -O ${sources[$i]}
done

Install

On the intranet machine, point it to the Nginx file server by setting DK_INSTALLER_BASE_URL:

DK_DATAWAY=https://openway.truewatch.com?token=<TOKEN> DK_INSTALLER_BASE_URL=http://[Nginx-Server]:8080/datakit HTTPS_PROXY=http://1.2.3.4:9530 bash -c 'eval "$(curl -L ${DK_INSTALLER_BASE_URL}/install.sh)"'

Remove-Item -ErrorAction SilentlyContinue Env:DK_*;
$env:DK_DATAWAY="https://openway.truewatch.com?token=<TOKEN>";
$env:DK_INSTALLER_BASE_URL="http://[Nginx-Server]:8080/datakit";
$env:HTTPS_PROXY="1.2.3.4:9530";
Set-ExecutionPolicy Bypass -scope Process -Force;
Import-Module bitstransfer;
start-bitstransfer  -source ${DK_INSTALLER_BASE_URL}/install.ps1 -destination .install.ps1;
powershell ./.install.ps1;

So far, the offline installation is complete. Note that HTTPS_PROXY is additionally set here.

Upgrade

If there is a new version of DataKit, you can download it as above and execute the following command to upgrade:

DK_INSTALLER_BASE_URL="http://<nginxServer>:8080/datakit" \
DK_UPGRADE=1 bash -c "$(curl -L ${DK_INSTALLER_BASE_URL}/install.sh)"

$env:DK_INSTALLER_BASE_URL="http://<nginxServer>:8080/datakit";
Remove-Item -ErrorAction SilentlyContinue Env:DK_*;
$env:DK_UPGRADE="1";
Set-ExecutionPolicy Bypass -scope Process -Force;
Import-Module bitstransfer;
start-bitstransfer  -source ${DK_INSTALLER_BASE_URL}/install.ps1 -destination .install.ps1;
powershell ./.install.ps1;

Kubernetes Offline Deployment

Bash Script Assisted Installation

Here is a simple script to help you complete the tasks of password free login, file distribution and image decompression.

datakit_tools.sh (Stand-alone open)
#!/bin/bash
# Please modify the host IP to be password-free
host_ip=(
  10.200.14.112
  10.200.14.113
  10.200.14.114
)
# Please change the login password
psd='123.com'

menu() {
  echo -e "\e[33m------Please select the required operation------\e[0m"
  echo -e "\e[33m1. Set SSH remote keyless login\e[0m"
  echo -e "\e[33m2. Scp remote transfer file\e[0m"
  echo -e "\e[33m3. Remote decompression image\e[0m"
  read -p "Please enter an option:" num
}

# Send ssh-copy-id to the host
SSH-COPY(){
yum install -y expect
ssh-keygen -t rsa -P '' -f ~/.ssh/id_rsa
for i in ${host_ip[@]}
  do
    /usr/bin/expect<<EOF
    spawn ssh-copy-id ${i}
    expect {
          "(yes/no)" {send "yes\r";exp_continue}
          "password" {send "${psd}\r"}
}
expect eof
EOF
done
}

SCP(){
read  -p "Please enter the file name to transfer (multiple files can be passed in): " file_name
for i in ${host_ip[@]}
  do
  for j in ${file_name[@]}
    do
      echo -e "\e[33m------${i}---${j}------\e[0m"
      scp ${j} root@${i}:/root/
  done
done
}

SSH(){
read -p "Please enter the file name to extract: " file_name
# Remotely unzip image packets
for i in ${host_ip[@]}
  do
    echo -e "\e[33m------${i}------\e[0m"
    # ssh root@${i} "docker load -i ${file_name}"
    ssh root@${i} " ctr -n=k8s.io image import ${file_name} "
done
}
#menu
CASE(){
case ${num} in
1)
SSH-COPY
        echo -e "\e[33m------------------------------------------------------\e[0m"
;;
2)
SCP
        echo -e "\e[33m------------------------------------------------------\e[0m"
;;
3)
SSH
        echo -e "\e[33m------------------------------------------------------\e[0m"
  ;;
*)

  echo -e "\e[31mPlease enter the number in the option{1|2|3}\e[0m"
esac
}

menu
CASE
read -p "Do you want to continue with the list operation? [y/n]：" a
while [ "${a}" == "y" ]
  do
    menu
    CASE
    read -p "Do you want to continue with the list operation? [y/n]：" a
    continue
done

# You need to modify the host IP and login password in the script, and then complete the operation according to the guidance.
chmod +x datakit_tools.sh
./datakit_tools.sh

Agent Installation

If there is a machine in the intranet that can connect to the internet, you can deploy a nginx server on this node to use as the image acquisition.

  • Download datakit.yaml and DataKit image files
wget https://static.truewatch.com/datakit/datakit.yaml -P /home/guance/
  • Download the DataKit image and make it into a package
# Pull the image of the amd64 architecture and make it into an image package
docker pull --platform amd64 pubrepo.truewatch.com/datakit/datakit:1.82.0
docker save -o datakit-amd64-1.82.0.tar pubrepo.truewatch.com/datakit/datakit:1.82.0
mv datakit-amd64-1.82.0.tar /home/guance

# Pull the image of the arm64 architecture and make it into an image package
docker pull --platform arm64 pubrepo.truewatch.com/datakit/datakit:1.82.0
docker save -o datakit-arm64-1.82.0.tar pubrepo.truewatch.com/datakit/datakit:1.82.0
mv datakit-arm64-1.82.0.tar /home/guance

# Check whether the image architecture is correct
docker image inspect pubrepo.truewatch.com/datakit/datakit:1.82.0 |grep Architecture
  • Modify Nginx configuration agent
/etc/nginx/nginx.conf
#user  nobody;
worker_processes  1;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}


http {
    include       mime.types;
    default_type  application/octet-stream;

    #log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
    #                  '$status $body_bytes_sent "$http_referer" '
    #                  '"$http_user_agent" "$http_x_forwarded_for"';

    #access_log  logs/access.log  main;

    sendfile        on;
    #tcp_nopush     on;

    #keepalive_timeout  0;
    keepalive_timeout  65;

    #gzip  on;

    server {
        listen       8080;
        server_name  localhost;
        root /home/guance;
        autoindex on;

        #charset koi8-r;

        #access_log  logs/host.access.log  main;


        #error_page  404              /404.html;

        # redirect server error pages to the static page /50x.html
        #

        # proxy the PHP scripts to Apache listening on 127.0.0.1:80
        #
        #location ~ \.php$ {
        #    proxy_pass   http://127.0.0.1;
        #}

        # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
        #
        #location ~ \.php$ {
        #    root           html;
        #    fastcgi_pass   127.0.0.1:9000;
        #    fastcgi_index  index.php;
        #    fastcgi_param  SCRIPT_FILENAME  /scripts$fastcgi_script_name;
        #    include        fastcgi_params;
        #}

        # deny access to .htaccess files, if Apache's document root
        # concurs with nginx's one
        #
        #location ~ /\.ht {
        #    deny  all;
        #}
    }


    # another virtual host using mix of IP-, name-, and port-based configuration
    #
    #server {
    #    listen       8000;
    #    listen       somename:8080;
    #    server_name  somename  alias  another.alias;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}


    # HTTPS server
    #
    #server {
    #    listen       443 ssl;
    #    server_name  localhost;

    #    ssl_certificate      cert.pem;
    #    ssl_certificate_key  cert.key;

    #    ssl_session_cache    shared:SSL:1m;
    #    ssl_session_timeout  5m;

    #    ssl_ciphers  HIGH:!aNULL:!MD5;
    #    ssl_prefer_server_ciphers  on;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}

}
  • Other intranet machines execute commands.
wget http://<nginx-server-ip>:8080/datakit.yaml
wget http://<nginx-server-ip>:8080/datakit-amd64-1.82.0.tar
  • Unzip image command
# docker
docker load -i /k8sdata/datakit/datakit-amd64-1.82.0.tar

# containerd
ctr -n=k8s.io image import /k8sdata/datakit/datakit-amd64-1.82.0.tar
  • Start DataKit container
kubectl apply -f datakit.yaml

Full Offline Installation

When there is no external network in the environment, the installation package needs be downloaded from the public network to the internal network through mobile hard disk (U disk).

  • Unzip image command
# docker
docker load -i datakit-amd64-1.82.0.tar

# containerd
ctr -n=k8s.io image import datakit-amd64-1.82.0.tar
  • The cluster controller executes the start command
kubectl apply -f datakit.yaml
  • Update command
# You need to decompress the image first
kubectl patch -n datakit daemonsets.apps datakit -p '{"spec": {"template": {"spec": {"containers": [{"image": "pubrepo.truewatch.com/datakit/datakit:<version>","name": "datakit"}]}}}}'
